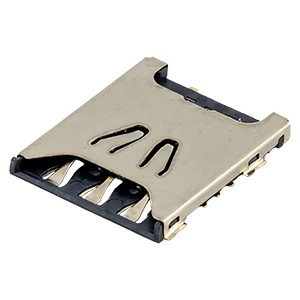

NSIM-22-B
Nano SIM Card Connector, 6 Contacts, Push In, Pull Out, Surface Mount, 1.10 mm Height Above Board, 1 µin Gold Plated
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector |
|
| Compatible Card | Nano SIM Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In / Pull Out |
|
| Number of Contacts | 6 |
|
| Height Above Board (mm) | 1.1 |
|
| Card Detect Switch | No |
|
| Contact Finish | Gold Plated |
|
| Contact Finish Thickness | 1 µin |
|
| Length (mm) | 12.3 |
|
| Width (mm) | 9.75 |
|
Technical Docs
DatasheetOther Resources
