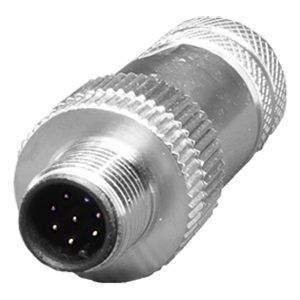

CPM1202-05B-02-MST-M9-67
5 Pins, Field Assembly, Screw Terminal, M12 x 1.0, PG9, B-Coding, Shielded, Metal Zinc Nickel Body, IP67, M12 Male Circular Connector Assembly Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M12 |
|
| Connector Type | Plug |
|
| Connector Style | Male |
|
| Coding | B |
|
| Number of Positions | 5 |
|
| Mounting Style | Free Hanging |
|
| Termination | Screw Terminal |
|
| Voltage Rating (Vac) | 60 |
|
| Current Rating (A) | 4 |
|
| Shielding | Yes |
|
| Mounting Thread Size | M12 x 1.0 |
|
| Cable Outlet Size | PG9 |
|
| Color | Silver |
|
| Contact Finish | Gold Plated |
|
| Shell Finish | Zinc Nickel Plated |
|
| Shell Size (mm) | 12 |
|
| IP Rating | IP67 |
|
| Series | CPM1202 |
|
