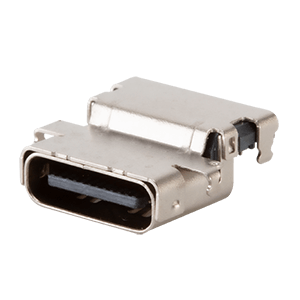

UJ40-32-C-H-G3-MSMT-R-P24-TR
Type C, USB 4.0 Gen 3x2, 40 Gbps, 5 Vac, 5 A, Horizontal, Mid Mount SMT, SMT Contact, Gold Plated 30 µin, Recessed Lip, 24 Pins, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Mid Mount SMT |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 4.0 Gen 3x2 |
|
| Data Transfer Speed | 40 Gbps |
|
| Voltage Rating | 5 |
|
| Input Type | Vac |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 30 µin |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 9.92 x 12 x 1.61 |
|
| IP Rating | No IP Rating |
|
