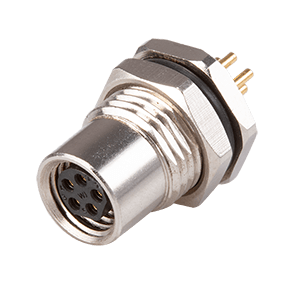

CDM805-08A-FP-F011-67
8 Pins, Panel Mount, Pc Pins, Front Fastened M11 x 1.0, A-Coding, Screw Copper Alloy, IP67, M8 Female Circular Connector Jack
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M8 |
|
| Connector Type | Jack |
|
| Connector Style | Female |
|
| Mounting Style | Panel Mount |
|
| Termination | Pc Pins |
|
| Fastening Type | Threaded Front |
|
| Coding | A |
|
| Voltage Rating (Vac) | 30 |
|
| Current Rating (A) | 1.5 |
|
| Number of Positions | 8 |
|
| Pin Size (mm) | 0.6 |
|
| Mounting Thread Size | M11 x 1.0 |
|
| Shell Size (mm) | 8 |
|
| Shell Finish | Brass with Nickel Plating |
|
| Shielding | No |
|
| Color | Silver |
|
| Contact Finish | Gold Plated |
|
| IP Rating | IP67 |
|
| Series | CDM805 |
|
