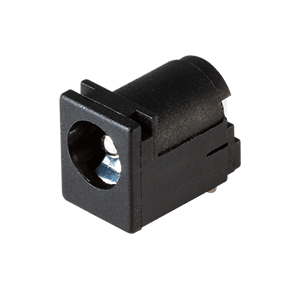

PJ-037B

PJ-037B
PJ-037B Alternate View

PJ-037B

2.5 x 6.5 mm, 2.5 A, Horizontal, Through Hole, Dc Power Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 2.5
Outer Diameter (mm) 6.5
Insertion Depth/Length (mm) 9
Mounting Style Through Hole
Orientation Horizontal
Voltage Rating (Vdc) 24
Current Rating (A) 2.5
Number of Conductors 2
Internal Switch(es) 0
Shielding No
Dimensions LxWxH (mm) 14.5 x 9 x 11
