SJ-3506-SMT-TR

SJ-3506-SMT-TR

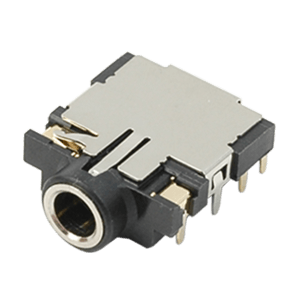

3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Dual Switches, Shielded, 3 Conductors, Normally Open Switch, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Audio Standard (mm) 3.5
Connector Type Jack
Mounting Style Mid Mount SMT
Number of Conductors 3
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding Yes
Internal Switch(es) Normally Open
Number of Ports 1
Color Black
