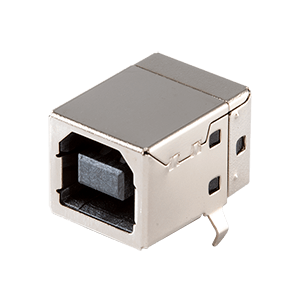

UJ2-B-HR-G-TH
Type B, USB 2.0, 480 Mbps, 5 Vdc, 1.5 A, Horizontal, Through Hole, 0.6 µin, Pick & Place, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Through Hole |
|
| USB Type | Type B |
|
| Orientation | Horizontal |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 5 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 1.5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| IP Rating | No IP Rating |
|
| Series | UJ2 |
|
| Dimensions LxWxH (mm) | 16.4 x 14.5 x 10.7 |
|
