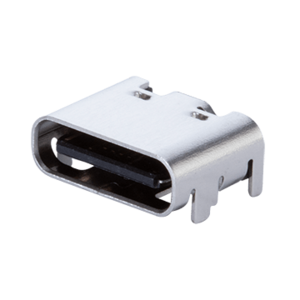

UJ20-C-H-G-SMT-2-P16-TR
Type C, USB 2.0, 480 Mbps, 48 Vdc, 5 A, Horizontal, Surface Mount Anchor Pins Mounting Style, Surface Mount Contact Pin Type, Gold Plated 3 µin, 16 Pins, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Surface Mount, Anchor Pins |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Horizontal |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 48 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | 3 µin |
|
| Color Insulator | Black |
|
| Series | UJ20 |
|
