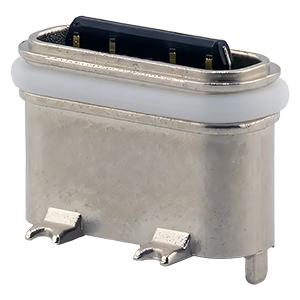

UJ20-C-V-G-TH-11B-P16-TR-X7
Type C, USB 2.0, 480 Mbps, 20 Vdc, 3 A, Vertical, Through Hole, Gold Flash, IPX7, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Mounting Style | Through Hole |
|
| USB Type | Type C |
|
| Orientation | Vertical |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| IP Rating | IPX7 |
|
| Dimensions LxWxH (mm) | 10 x 4 x 7.8 |
|
