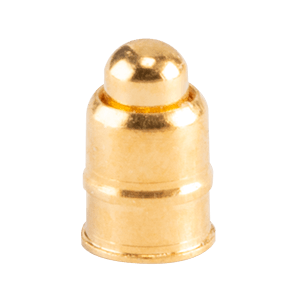

CPG-80-SMT-B
60 gf Mid Compression Operating Force, Spring Loaded, 12 Vdc, 1 A, Gold Plated, 2 x 2, 2.54 mm pitch, Surface Mount, Pogo Pin
Specifications
| Type | Description | |
|---|---|---|
| Contact Type | Sleeve and Plunger |
|
| Mounting Style | Surface Mount |
|
| Number of Pins | 4 |
|
| Recommended Working Height (mm) | 2 |
|
| Minimum Working Height (mm) | 1.85 |
|
| Pad Layout Dimension (mm) | 1.8 |
|
| Full Stroke Capability (mm) | 0.65 |
|
| Plunger Width (mm) | 1 |
|
| Overall Height (mm) | 2.5 |
|
| Mid Stroke (mm) | 0.5 |
|
| Barrel Contact Finish Thickness (µin) | 10 |
|
| Plunger Contact Finish Thickness (µin) | 10 |
|
| Barrel Diameter (mm) | 1.48 |
|
| Voltage Rating (Vdc) | 5 |
|
| Current Rating (A) | 1 |
|
| Mid Compression Operating Force (gf) | 60 |
|
| Contact Finish | Gold Plated |
|
| Mating Cycles | 10000 |
|
| Contact Material | Brass Alloy |
|
| Spring | Stainless steel (SUS 304) |
|
| Pad Shape | Round |
|
