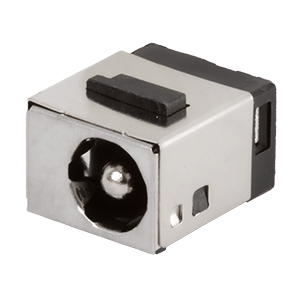

PJ-108H
1.65 x 5.9 mm, 5.0 A, Panel Mount, Through Hole, Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1.65 |
|
| Outer Diameter (mm) | 5.9 |
|
| Mounting Style | Panel Mount |
|
| Orientation | Vertical |
|
| Voltage Rating (Vdc) | 20 |
|
| Current Rating (A) | 5 |
|
| Number of Conductors | 2 |
|
| Shielding | Yes |
|
| Insertion Depth/Length (mm) | 8.05 |
|
| Dimensions LxWxH (mm) | 11.5 x 10 x 7.2 |
|
