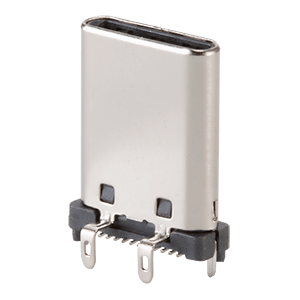

UP32-1-C-V-G1-SMT-T-P24-TR
Type C, USB 3.2 Gen 1, 5 Gbps, 5 Vdc, 3 A, Vertical, Surface Mount w/ Anchor Pins, SMT contacts, Gold Plated 1 µin, 11.1mm, 24 Pins, USB Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Plug |
|
| Mounting Style | Surface Mount, Anchor Pins |
|
| Contact Pin Type | Surface Mount |
|
| USB Type | Type C |
|
| Orientation | Vertical |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Voltage Rating | 5 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | 1 µin |
|
| Color Insulator | Black |
|
| Dimensions LxWxH (mm) | 5.6 x 8.66 x 11.1 |
|
| IP Rating | No IP Rating |
|
