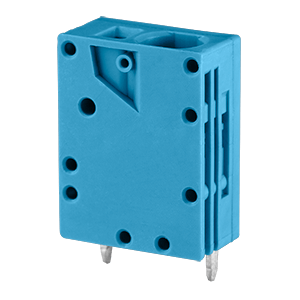

TBL-0014-750 Series
1~6 Poles, Screwless, Vertical, 7.50 Pitch, 24~8 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Number of Levels | 1 |
|
| Orientation | Vertical |
|
| IEC Current Rating (A) | 41 |
|
| IEC Voltage Rating (Vdc) | 800 |
|
| UL Current Rating (A) | 40 |
|
| UL Voltage Rating (Vdc) | 600 |
|
| Wire Gauge (AWG) | 24~8 |
|
| Pitch (mm) | 7.5 |
|
| Dimensions WxH (mm) | 24.15 x 18.5 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Dimensions WxH (in) | 0.95 x 0.73 |
|
| Series | TBL-0014-750 |
|
