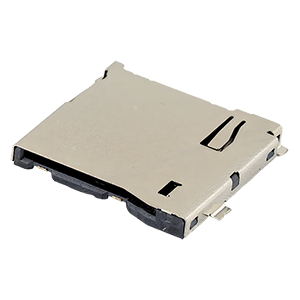

MSD-13-A
Micro SD Card Connector and Ejector, 9 Contacts, Push In, Auto Eject Out, Surface Mount, 1.88 mm Height Above Board, 1 µin Gold Plated
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector and Ejector |
|
| Compatible Card | Micro SD Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In / Auto Eject Out |
|
| Number of Contacts | 9 |
|
| Height Above Board (mm) | 1.88 |
|
| Card Detect Switch | Yes (Normally Open) |
|
| Contact Finish | Gold Plated |
|
| Contact Finish Thickness | 1 µin |
|
| Length (mm) | 14.5 |
|
| Width (mm) | 14.7 |
|
