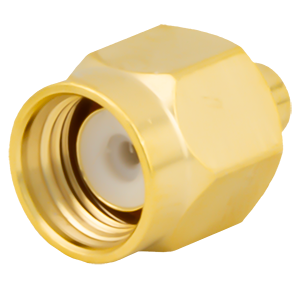

RF-SMA-CS-ST-M-6-032
RF SMA Connector, 0~6 GHz, 50O Impedence, VSWR 1.5 max, Straight, Cable Solder Assembly, Brass, Standard Polarity, RF Plug
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Plug |
|
| RF Connector Type | SMA |
|
| Frequency Range (GHz) | 0~6 |
|
| Nominal Impedence (Ω) | 50 |
|
| Voltage Standing Wave Ratio (max) | 1.5 |
|
| Insulation Resistance (Ω min) | 5000 |
|
| Working Voltage (V rms) | 335 |
|
| Dielectric Withstanding Voltage (V rms) | 1000 |
|
| Mounting Style | Cable Mount |
|
| Contact Termination | Cable Solder |
|
| Polarity | Standard Polarity |
|
| Orientation | Vertical |
|
| Body Material | Brass |
|
| Industry Standard(s) | MIL-C-39012, CECC 22110/111 |
|
| Length (mm) | 12.5 |
|
| Width (mm) | 7.8 |
|
| Height Above Board (mm) | 7.8 |
|
| IP Rating | No IP Rating |
|
