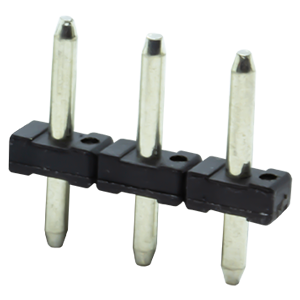

TBP06H-500-03BK
3 Poles, Pluggable, 5.00 mm Pitch, Vertical Through Hole, Male Pin Terminal Block Header
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Male Pin Header |
|
| Number of Positions | 3 |
|
| Orientation | Vertical |
|
| IEC Current Rating (A) | 12 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| UL Current Rating (A) | 10 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Pitch (mm) | 5 |
|
| Dimensions WxH (mm) | 2.8 x 12.5 |
|
| Dimensions WxH (in) | 0.11 x 0.49 |
|
| Series | TBP06H-500 |
|
