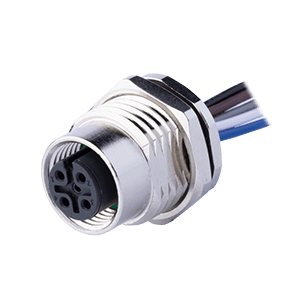

CDM1222-04A-FW-F16-050-67
4 Pins, Panel Mount, Wire Leads, Front Fastened M16 x 1.5, A-Coding, Screw Copper Alloy, IP67, M12 Female Circular Connector Jack
Specifications
| Type | Description | |
|---|---|---|
| Connector Size | M12 |
|
| Current Rating (A) | 4 |
|
| Connector Type | Jack |
|
| Number of Positions | 4 |
|
| Connector Style | Female |
|
| Mounting Style | Panel Mount |
|
| Voltage Rating (Vac) | 250 |
|
| Termination | Wire Leads |
|
| Shielding | No |
|
| IP Rating | IP67 |
|
| Coding | A |
|
| Mounting Thread Size | M16 x 1.5 |
|
| Fastening Type | Threaded Front |
|
| Color | Silver |
|
| Contact Finish | Gold Plated |
|
| Shell Finish | Brass with Nickel Plating |
|
| Shell Size (mm) | 12 |
|
| Wire Gauge (AWG) | 22 |
|
| Series | CDM1222 |
|
