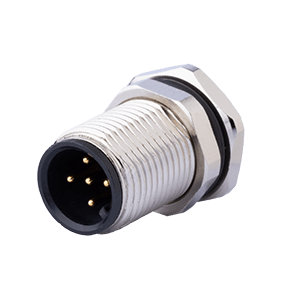

CDM1209 Series

CDM1209 Series
CDM1209 Series Alternate View
CDM1209 Series Alternate View

CDM1209-04A-MP-F12-67

4 Pins, Panel Mount, Pc Pins, Front Fastened M12 x 1.0, A-Coding, Screw Copper Alloy, IP67, M12 Male Circular Connector Jack

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Connector Size M12
Mounting Style Panel Mount
Connector Style Male
Shielding No
Termination Pc Pins
Voltage Rating (Vac) 250
Current Rating (A) 4
IP Rating IP67
Number of Positions 4
Pin Size (mm) 1
Coding A
Mounting Thread Size M12 x 1.0
Color Silver
Contact Finish Gold Plated
Fastening Type Threaded Front
Shell Finish Brass with Nickel Plating
Shell Size (mm) 12
Series CDM1209
