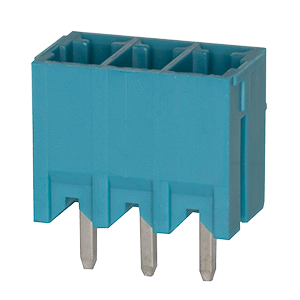

TBP03R2-350 Series
2~24 Poles, Pluggable, Receptacle, Vertical, 3.50 Pitch, Terminal Block Connector
Features
| UL and CE safety approvals |
Options
| 2~24 pole counts |
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Male Pin Header |
|
| Orientation | Vertical |
|
| Pitch (mm) | 3.5 |
|
| IEC Current Rating (A) | 7 |
|
| UL Current Rating (A) | 8 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Dimensions WxH (mm) | 9.2 x 7.2 |
|
| Dimensions WxH (in) | 0.36 x 0.28 |
|
| Series | TBP03R2-350 |
|
