Dc Fans with omniCOOLâ„¢ System
Innovative Sleeve Bearing Design Improves Fan Life and Performance

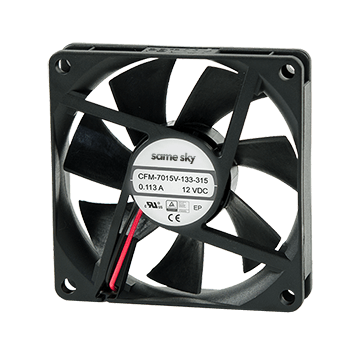

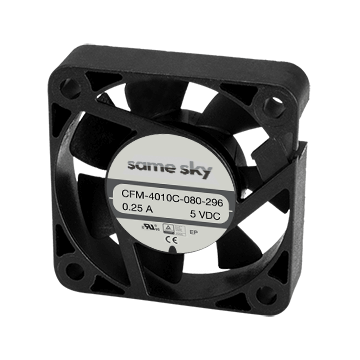

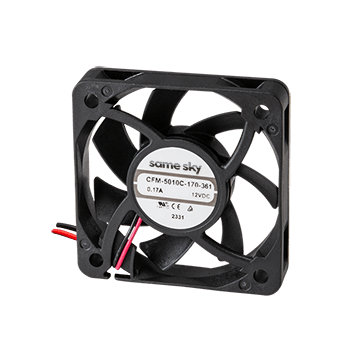

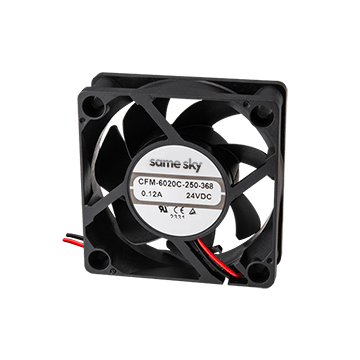

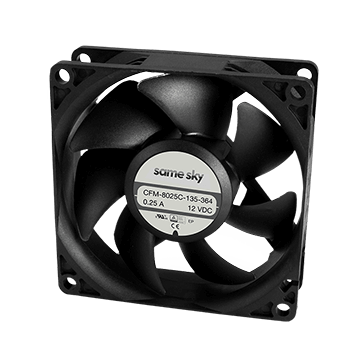

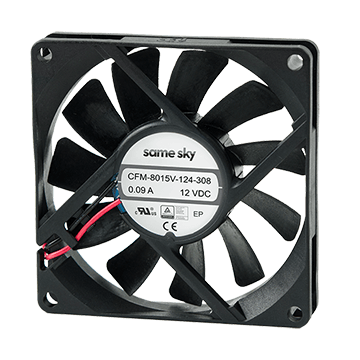

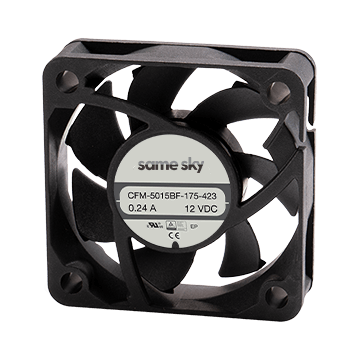

Advanced Sleeve Bearing Dc Cooling Fans
Same Sky's high performance sleeve bearing axial fans and centrifugal blowers deliver superior forced air cooling performance and longer operational life compared to traditional designs thanks to their innovative omniCOOLâ„¢ system. With airflows ranging from 0.33 CFM up to 138 CFM, these dc axial fans and blowers feature noise levels from 6.6 dB to 54 dBA, making them ideal for a variety of IT and telecommunication equipment, medical devices, and industrial applications. These models also carry rated voltages of 5, 12, and 24 Vdc, 1500 RPM to 17000 RPM rated speeds, and static pressures ranging from 0.02 to 1.32 in H2O.
Highlights
- omniCOOLâ„¢ system
- 20 to 120 mm frame sizes
- Airflow, 0.33 to 138 CFM
- Speeds, 1500 to 17000 RPM
- Noise, 6.6 to 54 dBA
CBM-3507CF-045-139
12 V, 0.09 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-045-139-20
12 V, 0.09 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-045-139-22
12 V, 0.09 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-055-183
12 V, 0.150 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-055-183-20
12 V, 0.28 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-055-183-22
12 V, 0.08 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-065-219
12 V, 0.2 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-065-219-20
12 V, 0.2 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-065-219-22
12 V, 0.2 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-085-295
12 V, 0.38 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-085-295-20
12 V, 0.38 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-085-295-22
12 V, 0.38 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-145-139
12 V, 0.60 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-145-139-20
12 V, 0.60 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-145-139-22
12 V, 0.60 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-155-183
12 V, 0.60 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-155-183-20
12 V, 0.60 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-155-183-22
12 V, 0.60 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-165-219
12 V, 0.08 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-165-219-20
12 V, 0.08 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-165-219-22
12 V, 0.08 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-185-295
12 V, 0.15 A, 35 x 35 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-185-295-20
12 V, 0.15 A, 35 x 35 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-3507CF-185-295-22
12 V, 0.15 A, 35 x 35 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-035-218
5 V, 0.06 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-035-218-20
5 V, 0.06 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-035-218-22
5 V, 0.06 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-050-238
5 V, 0.14 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-050-238-20
5 V, 0.14 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-050-238-22
5 V, 0.14 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-065-295
5 V, 0.21 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-065-295-20
5 V, 0.21 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-065-295-22
5 V, 0.21 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-135-218
12 V, 0.60 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-135-218-20
12 V, 0.60 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-135-218-22
12 V, 0.60 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-150-238
12 V, 0.09 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-150-238-20
12 V, 0.09 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-150-238-22
12 V, 0.09 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-165-295
12 V, 0.14 A, 40 x 40 x 7 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-165-295-20
12 V, 0.14 A, 40 x 40 x 7 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4007C-165-295-22
12 V, 0.14 A, 40 x 40 x 7 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-4010C-140-178
12 V, 80 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower |
CBM-4010C-140-178-20
12 V, 80 mA, 40 x 40 x 10 mm, Tachometer Signal, Dc Centrifugal Blower |
CBM-4010C-140-178-22
12 V, 80 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower, Tachometer Signal, PWM Control Signal |
CBM-4010C-150-227
12 V, 90 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower |
CBM-4010C-150-227-20
12 V, 90 mA, 40 x 40 x 10 mm, Tachometer Signal, Dc Centrifugal Blower |
CBM-4010C-150-227-22
12 V, 90 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower, Tachometer Signal, PWM Control Signal |

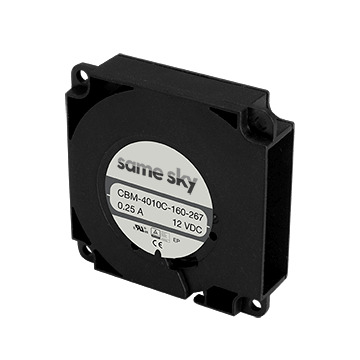

CBM-4010C-160-267
12 V, 110 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower |
CBM-4010C-160-267-20
12 V, 110 mA, 40 x 40 x 10 mm, Tachometer Signal, Dc Centrifugal Blower |
CBM-4010C-160-267-22
12 V, 110 mA, 40 x 40 x 10 mm, Dc Centrifugal Blower, Tachometer Signal, PWM Control Signal |
CBM-4020C-130-216
12 V, 40 mA, 40 x 40 x 20 mm, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-130-216-20
12 V, 40 mA, 40 x 40 x 20 mm, Tachometer Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-130-216-22
12 V, 40 mA, 40 x 40 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-145-305
12 V, 60 mA, 40 x 40 x 20 mm, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-145-305-20
12 V, 60 mA, 40 x 40 x 20 mm, Tachometer Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-145-305-22
12 V, 60 mA, 40 x 40 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-160-367
12 V, 120 mA, 40 x 40 x 20 mm, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-160-367-20
12 V, 120 mA, 40 x 40 x 20 mm, Tachometer Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-4020C-160-367-22
12 V, 120 mA, 40 x 40 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢, Dc Centrifugal Blower |
CBM-5015CF-035-293
5 V, 0.14 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-035-293-20
5 V, 0.14 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-035-293-22
5 V, 0.14 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-045-348
5 V, 0.21 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-045-348-20
5 V, 0.21 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-045-348-22
5 V, 0.21 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-055-391
5 V, 0.33 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-055-391-20
5 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-055-391-22
5 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-135-293
12 V, 0.05 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-135-293-20
12 V, 0.05 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-135-293-22
12 V, 0.05 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-145-348
12 V, 0.12 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-145-348-20
12 V, 0.12 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-145-348-22
12 V, 0.12 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-155-391
12 V, 0.15 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-155-391-20
12 V, 0.15 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-155-391-22
12 V, 0.15 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-165-428
12 V, 0.18 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-165-428-20
12 V, 0.18 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-165-428-22
12 V, 0.18 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |

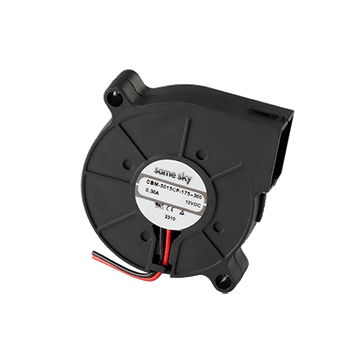

CBM-5015CF-175-459
12 V, 0.33 A, 51.6 x 51.2 x 15 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-175-459-20
12 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5015CF-175-459-22
12 V, 0.33 A, 51.6 x 51.2 x 15 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-140-305
12 V, 0.09 A, 49.2 x 49.8 x 20 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-140-305-20
12 V, 0.09 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-140-305-22
12 V, 0.09 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-150-320
12 V, 0.17 A, 49.2 x 49.8 x 20 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-150-320-20
12 V, 0.17 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-150-320-22
12 V, 0.17 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-160-360
12 V, 0.27 A, 49.2 x 49.8 x 20 mm, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-160-360-20
12 V, 0.27 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
CBM-5020C-160-360-22
12 V, 0.27 A, 49.2 x 49.8 x 20 mm, Tachometer Signal, PWM Control Signal, omniCOOLâ„¢ Dc Centrifugal Blower |
|
