CFM-40V Series

CFM-4020V-280-275

24 V, 45 mA, 40 x 40 x 20 mm, Dc Fan

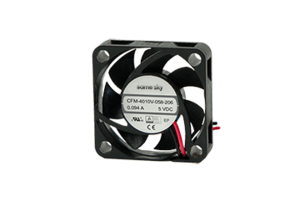

The CFM-40V series is a family of 40 x 40 mm dc axial fans featuring airflows up to 10.8 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.

Datasheet

Features

40 x 40 mm frame
Auto restart protection standard on all models
Multiple speed options for different cooling needs
omniCOOL™ bearing system

Specifications

Type Description
Select
Air Flow (CFM) 10.8
Rated Speed (RPM) 8000
Static Pressure (inH2O) 0.29
Noise (dBA) 27.5
Rated Voltage (Vdc) 24
Max Input Current (mA) 45
Tachometer Signal No
Rotation Detector No
PWM Control Signal No
Dimensions LxWxH (mm) 40 x 40 x 20
Series CFM-40V
Bearing Type omniCOOL™

Technical Docs

Datasheet 3D Model
