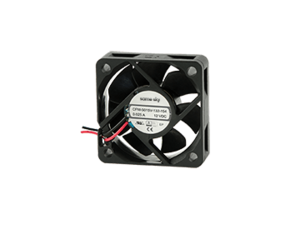

CFM-5015V-247-290-20
24 V, 34 mA, 50 x 50 x 15 mm, Dc Fan, Tachometer Signal
The CFM-50V series is a family of 50 x 50 mm dc axial fans featuring airflows up to 18.6 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 50 x 50 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 13 |
|
| Rated Speed (RPM) | 5000 |
|
| Static Pressure (inH2O) | 0.17 |
|
| Noise (dBA) | 29 |
|
| Voltage Rating (Vdc) | 24 |
|
| Max Input Current (mA) | 34 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 50 x 50 x 15 |
|
| Series | CFM-50V |
|
