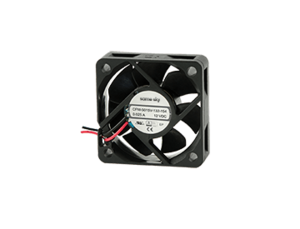

CFM-5015V-150-290-20
12 V, 54 mA, 50 x 50 x 15 mm, Dc Fan, Tachometer Signal
The CFM-50V series is a family of 50 x 50 mm dc axial fans featuring airflows up to 18.6 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
omniCOOL™ bearing system |
50 x 50 mm frame |
Multiple speed options for different cooling needs |
Auto restart protection standard on all models |
Specifications
Type | Description | |
---|---|---|
Bearing Type | omniCOOL™ |
|
Air Flow (CFM) | 13 |
|
Rated Speed (RPM) | 5000 |
|
Static Pressure (inH2O) | 0.17 |
|
Noise (dBA) | 29 |
|
Rated Voltage (Vdc) | 12 |
|
Max Input Current (mA) | 54 |
|
Tachometer Signal | Yes |
|
Rotation Detector | No |
|
PWM Control Signal | No |
|
Dimensions LxWxH (mm) | 50 x 50 x 15 |
|
Series | CFM-50V |
|
