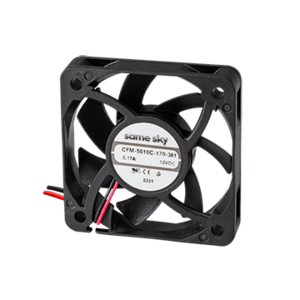

CFM-5010C-170-361-22
12 V, 150 mA, 50 x 50 x 10 mm, Tachometer Signal, PWM Control Signal, omniCOOL™ Dc Fan
Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, this axial fan bridges the cost-performance gap between conventional sleeve and ball bearing fan designs.
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Static Pressure (inH2O) | 0.18 |
|
| Air Flow (CFM) | 13.97 |
|
| Tachometer Signal | Yes |
|
| Rated Speed (RPM) | 6500 |
|
| Noise (dBA) | 34.5 |
|
| Dimensions LxWxH (mm) | 50 x 50 x 10 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 230 |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Series | CFM-50C |
|
