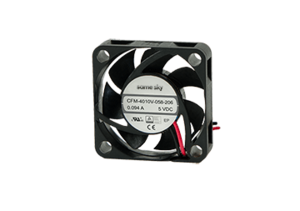

CFM-40V Series

CFM-4020V-070-255-20

5 V, 173 mA, 40 x 40 x 20 mm, Dc Fan, Tachometer Signal

The CFM-40V series is a family of 40 x 40 mm dc axial fans featuring airflows up to 10.8 CFM and coming standard with auto restart protection on all models. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.

Datasheet

Features

40 x 40 mm frame
Auto restart protection standard on all models
Multiple speed options for different cooling needs
omniCOOL™ bearing system

Specifications

Type Description
Select
Bearing Type omniCOOL™
Air Flow (CFM) 8.9
Rated Speed (RPM) 7000
Static Pressure (inH2O) 0.22
Noise (dBA) 25.5
Rated Voltage (Vdc) 5
Max Input Current (mA) 173
Tachometer Signal Yes
Rotation Detector No
PWM Control Signal No
Dimensions LxWxH (mm) 40 x 40 x 20
Series CFM-40V

Technical Docs

Datasheet 3D Model
