GF1005M

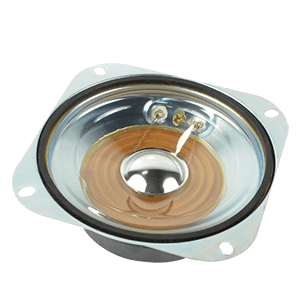

GF1005M Speaker Profile View
GF1005M Speaker Bottom View

GF1005M

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

Recommended Replacement

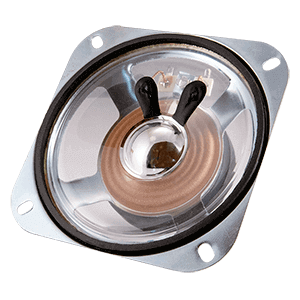

CSS-10237-58
CSS-10237-58 102 X 37 mm, Square Frame, 5 W, 8 Ohm, Ferrite Magnet, PET Cone, Speaker

100 mm, Square Frame, 15.0 W, 8 Ohm, Ferrite Magnet, PET Cone, Speaker

Amplify Your Innovation!

Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.

Learn More

Specifications

Type Description
Select
Max Input (W) 20
Nominal Input (W) 15
Impedance (Ohms) 8
Resonance Freq. (Hz) 820
Cone Type PET
Magnet Type Ferrite
Frame Shape Square
Dimensions LxWxH (mm) 100 x 100 x 42
Dimensions LxWxH (in) 3.94 x 3.94 x 1.65
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet
