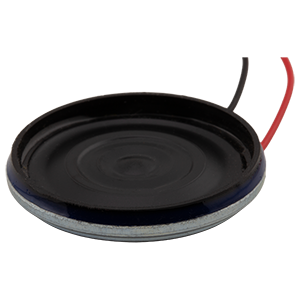

CMS-2863-158L200-X7
28 x 6.3 mm, Round Frame, 1.5 W, 8 Ohm, Nd-Fe-B Magnet, PEI Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 102.5 |
|
| Efficiency Testing | 1.5 / 0.1 |
|
| Nominal Input (W) | 1.5 |
|
| Max Input (W) | 2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 800 |
|
| Mounting Style | Wire Leads |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 26 x 26 x 6.3 |
|
| Dimensions LxWxH (in) | 1.02 x 1.02 x 0.25 |
|
| Series | CMS-2863-158X-X7 |
|
| IP Rating | IPX7 |
|
