CLS0401MAE
Recommended Replacement
CMS-4051-058SP

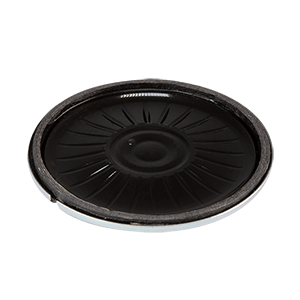

40 x 5.1 mm, Round Frame, .5 W, 8 Ohm, Nd-Fe-B Magnet, PET Cone, Speaker
40 mm, Round Frame, 1.0 W, 4 Ohm, Neodymium Magnet, PET Cone, Speaker
Specifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 91 (1 W / 0.5 m) |
|
| Max Input (W) | 2 |
|
| Nominal Input (W) | 1 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 600 |
|
| Cone Type | PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 40 x 40 x 5 |
|
| Dimensions LxWxH (in) | 1.57 x 1.57 x 0.2 |
|
| Mounting Style | Solder Pads |
|
