CLS0231MA3E-L152

CLS0231MA3E-L152

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

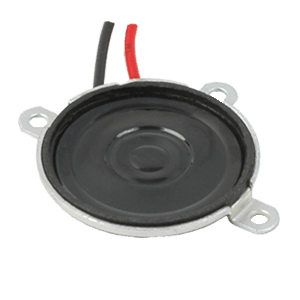

23 mm, Round Frame, 0.2 W, 32 Ohm, Neodymium Magnet, Mylar Cone, Wire Leads, Speaker

Amplify Your Innovation!

Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.

Learn More

Specifications

Type Description
Select
Max Input (W) 0.4
Nominal Input (W) 0.2
Impedance (Ohms) 32
Resonance Freq. (Hz) 680
Cone Type Mylar
Magnet Type Nd-Fe-B
Frame Shape Round
Dimensions LxWxH (mm) 23 x 23 x 3.6
Dimensions LxWxH (in) 0.91 x 0.91 x 0.14
Mounting Style Wire Leads

Technical Docs
