GF1603

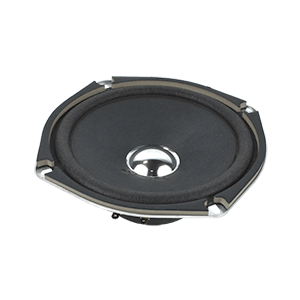

GF1603 Speaker Profile View
GF1603 Speaker Bottom View

GF1603

156 mm, Square Frame, 15.0 W, 8 Ohm, Ferrite Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 96 (1 W / 0.5 m)
Max Input (W) 25
Nominal Input (W) 15
Impedance (Ohms) 8
Resonance Freq. (Hz) 85
Cone Type Paper
Magnet Type Ferrite
Frame Shape Square
Dimensions LxWxH (mm) 155.7 x 155.7 x 58.2
Dimensions LxWxH (in) 6.1 x 6.1 x 2.3
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet
