GF1207

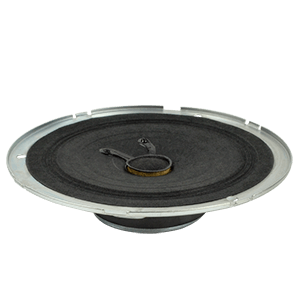

GF1207 Speaker Profile View
GF1207 Speaker Bottom View

GF1207

137 mm, Round Frame, 5.0 W, 8 Ohm, Ferrite Magnet, Paper Cone, Speaker

Datasheet

Amplify Your Innovation!


Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.

Learn More

Specifications

Type Description
Select
S.P. Level (dB) 96 (1 W / 0.5 m)
Max Input (W) 10
Nominal Input (W) 5
Enclosure Recommended
Impedance (Ohms) 8
Resonance Freq. (Hz) 160
Cone Type Paper
Magnet Type Ferrite
Dimensions LxWxH (mm) 137 x 137 x 31.5
Frame Shape Round
Dimensions LxWxH (in) 5.39 x 5.39 x 1.24
IP Rating No IP Rating
Mounting Style Solder Eyelet(s)
