GA1006

GA1006

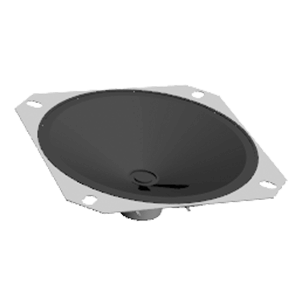

103 mm, Square Frame, 2.0 W, 8 Ohm, AlNiCo Magnet, Paper Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 92 (1 W / 0.5 m)
Max Input (W) 4
Nominal Input (W) 2
Impedance (Ohms) 8
Resonance Freq. (Hz) 200
Cone Type Paper
Magnet Type Alnico
Frame Shape Square
Dimensions LxWxH (mm) 103 x 103 x 36
Dimensions LxWxH (in) 4.06 x 4.06 x 1.42
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet 3D Model
