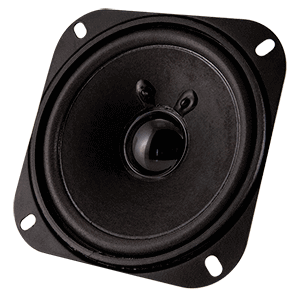

CSS-10246-304
102 X 46 mm, Square Frame, 10 W, 4 Ohm, Ferrite Magnet, PU and Paper Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 97 (10 W / 0.5 m) |
|
| Nominal Input (W) | 10 |
|
| Max Input (W) | 15 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 110 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Eyelet(s) |
|
| Cone Type | PU and Paper |
|
| Magnet Type | Ferrite |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 102 x 102 x 46 |
|
| Dimensions LxWxH (in) | 4.02 x 4.02 x 1.81 |
|
| IP Rating | No IP Rating |
|
