CSS-1021028N

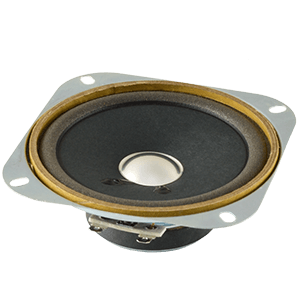

102 mm x 102 mm, Square Frame, 10 W, 8 Ohm, Neodymium Magnet, Paper Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 107 (1 W / 0.1 m) |
|
| Nominal Input (W) | 10 |
|
| Max Input (W) | 12 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 115 |
|
| Enclosure | Recommended |
|
| Cone Type | Paper |
|
| Dimensions LxWxH (mm) | 102 x 102 x 35.5 |
|
| Magnet Type | Nd-Fe-B |
|
| Dimensions LxWxH (in) | 4.02 x 4.02 x 1.4 |
|
| Frame Shape | Square |
|
| Mounting Style | Solder Pads |
|
| IP Rating | No IP Rating |
|
