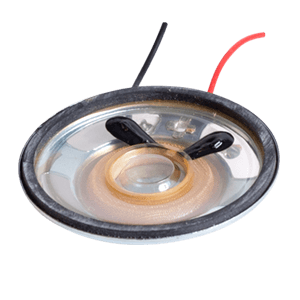

CLS0451M-L152
45 mm, Round Frame, 0.2 W, 8 Ohm, Neodymium Magnet, PET Cone, Wire Leads, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 82 (0.2 W / 0.5 m) |
|
| Max Input (W) | 0.3 |
|
| Nominal Input (W) | 0.2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 600 |
|
| Cone Type | PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 45 x 45 x 8.5 |
|
| Dimensions LxWxH (in) | 1.77 x 1.77 x 0.33 |
|
| Mounting Style | Wire Leads |
|
