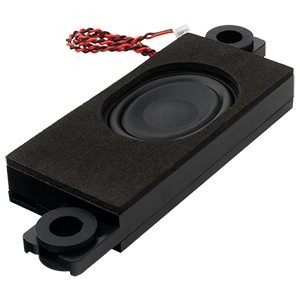

CES-703310-28L200B
70 x 33 mm, Rectangular Case, 2 W, 8 Ohm, Nd-Fe-B Magnet, Cloth and Paper Cone, Enclosed Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 78 |
|
| Efficiency Testing | 1 W / 1 m |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 3 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 400 |
|
| Enclosure | Included |
|
| Mounting Style | Wire Leads with Connector |
|
| Cone Type | Paper and Cloth |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 70 x 33 x 10 |
|
| IP Rating | No IP Rating |
|
| Series | CES-703310-28X |
|
