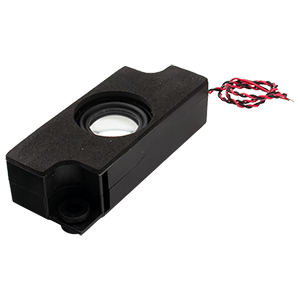

CES-702817-34L200-67
70 x 28 mm, Rectangular Case, 3 W, 4 Ohm, Nd-Fe-B Magnet, PU and PET Cone, Enclosed Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 81 |
|
| Efficiency Testing | 1 W / 0.5 m |
|
| Nominal Input (W) | 3 |
|
| Max Input (W) | 5 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 380 |
|
| Enclosure | Included |
|
| Mounting Style | Wire Leads |
|
| Cone Type | PU and PET |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 70 x 28 x 17 |
|
| IP Rating | IP67 |
|
| Series | CES-702817-34X-67 |
|
