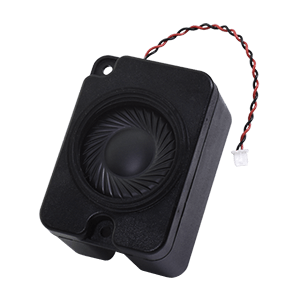

CES-503528-28PM-67
50 x 35 mm, Enclosed, Rectangular Case, 2 W, 8 Ohm, Neodymium Magnet, PEI Cone, Wire Leads with Connector, IP67, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 97 (2 W / 0.1 m) |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 2.5 |
|
| Enclosure | Included |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 680 |
|
| Cone Type | PEI |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Mounting Style | Wire Leads with Connector |
|
| Dimensions LxWxH (in) | 1.97 x 1.38 x 1.09 |
|
| Dimensions LxWxH (mm) | 50 x 35 x 27.8 |
|
| IP Rating | IP67 |
|
