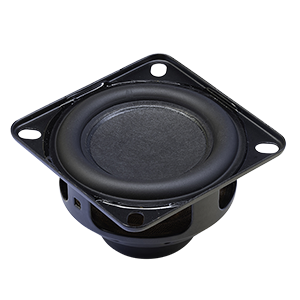

CDS-4528-44SP
45.2 x 28.1 mm, Square Frame, 4 W, 4 Ohm, Neodymium Magnet, PU & Paper Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 84 (1 W / 1 m) |
|
| Nominal Input (W) | 4 |
|
| Max Input (W) | 6 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 200 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Pads |
|
| Cone Type | PU and Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 45.2 x 45.2 x 28.1 |
|
| Dimensions LxWxH (in) | 1.8 x 1.8 x 1.1 |
|
| IP Rating | No IP Rating |
|
| Series | CDS-4528-44XX |
|
