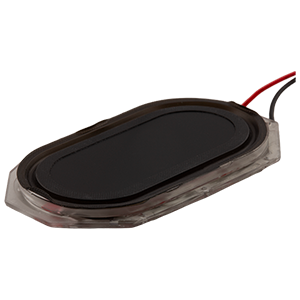

CDS-4237-067L200
42 x 24 x 3.7 mm, Oval Frame, .06 W, 7 Ohm, Nd-Fe-B Magnet, PU Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 98 |
|
| Efficiency Testing | 0.06 / 0.3 |
|
| Nominal Input (W) | 0.06 |
|
| Max Input (W) | 1 |
|
| Impedance (Ohms) | 7 |
|
| Resonance Freq. (Hz) | 200 |
|
| Mounting Style | Wire Leads |
|
| Cone Type | PU |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Oval |
|
| Dimensions LxWxH (mm) | 42 x 24 x 3.7 |
|
| Dimensions LxWxH (in) | 1.65 x 0.94 x 0.15 |
|
| Series | CDS-4237-067X |
|
| IP Rating | No IP Rating |
|
