GC0401S

GC0401S

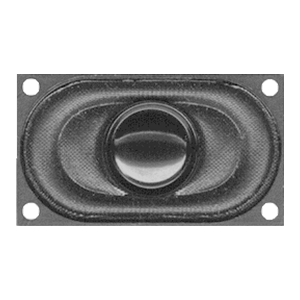

20 mm x 40 mm, Rectangular Frame, 1.0 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 89 (1 W / 0.5 m)
Max Input (W) 1.5
Nominal Input (W) 1
Impedance (Ohms) 8
Resonance Freq. (Hz) 550
Cone Type Cloth
Magnet Type Nd-Fe-B
Frame Shape Rectangular
Dimensions LxWxH (mm) 20 x 40 x 8
Dimensions LxWxH (in) 0.79 x 1.57 x 0.31
Mounting Style Solder Eyelet(s)

Technical Docs

Datasheet 3D Model
