GC0351P-3

GC0351P-3

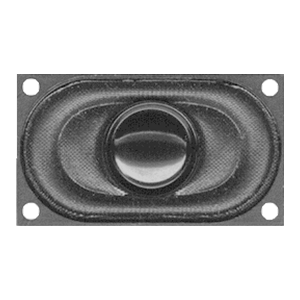

16 mm x 35 mm, Rectangular Frame, 1.0 W, 4 Ohm, Neodymium Magnet, Cloth Cone, Speaker

Datasheet

Specifications

Type Description
Select
S.P. Level (dB) 82 (1 W / 0.5 m)
Max Input (W) 2
Nominal Input (W) 1
Impedance (Ohms) 4
Resonance Freq. (Hz) 630
Cone Type Cloth
Magnet Type Nd-Fe-B
Frame Shape Rectangular
Dimensions LxWxH (mm) 16 x 35 x 7.4
Dimensions LxWxH (in) 0.63 x 1.38 x 0.29
Mounting Style Solder Eyelet(s)
