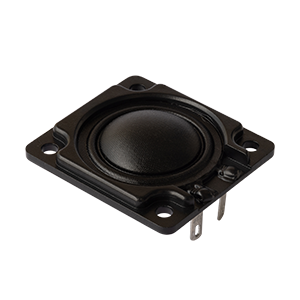

CTW-403614-206SE
40 x 36.5 x 14 mm, Rectangular Frame, 20 W, 6 Ohm, Neodymium Magnet, Polyester Cone, Tweeter
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Nominal Input (W) | 20 |
|
| Max Input (W) | 25 |
|
| Impedance (Ohms) | 6 |
|
| Resonance Freq. (Hz) | 1500 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Eyelet(s) |
|
| Cone Type | Polyester |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Rectangular |
|
| Dimensions LxWxH (mm) | 40 x 36.5 x 14 |
|
| Dimensions LxWxH (in) | 1.57 x 1.44 x 0.55 |
|
| Special Features | Tweeter |
|
| IP Rating | No IP Rating |
|
Technical Docs
DatasheetAll Speakers Categories
