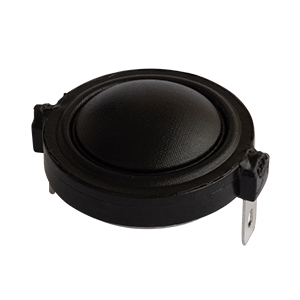

CTW-3014-204SE
30.7 x 14.5 mm, Round Frame, 20 W, 4 Ohm, Neodymium Magnet, Polyester Cone, Tweeter
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 84 |
|
| Efficiency Testing | 1 W / 1 m |
|
| Nominal Input (W) | 20 |
|
| Max Input (W) | 25 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 1600 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Eyelet(s) |
|
| Cone Type | Polyester |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 30.7 x 30.7 x 14.5 |
|
| Dimensions LxWxH (in) | 1.21 x 1.21 x 0.57 |
|
| IP Rating | No IP Rating |
|
| Special Features | Tweeter |
|
