CMSM-3116-34
31.6 x 16.6 mm, Square Frame, 3 W, 4 Ohm, Neodymium Magnet, Rubber & Aluminum Cone , IP67, Medical Speaker

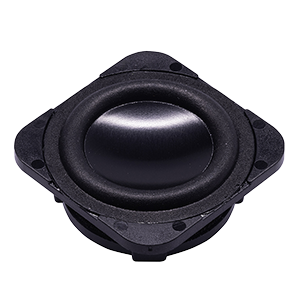

The CMSM-3116-34 is a 31.6 x 31.6 x 16.6 mm miniature medical speaker designed to meet the alarm signal requirements of IEC 60601-1-8. Housed in a square frame package, this medical speaker features an SPL of 98 dB at 10 cm, aluminum and rubber cone type, and solder eyelets mounting style. It also carries an IP67 rating for dealing with moisture and contaminants in harsh environments.
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 98 (3 W / 0.1 m) |
|
| Nominal Input (W) | 3 |
|
| Max Input (W) | 3.5 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 280 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Eyelet(s) |
|
| Cone Type | Aluminum and PU |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 31.6 x 31.6 x 16.6 |
|
| Dimensions LxWxH (in) | 1.2 x 1.2 x 0.65 |
|
| Special Features | Medical |
|
| IP Rating | IP67 |
|
