CMS0281KLX

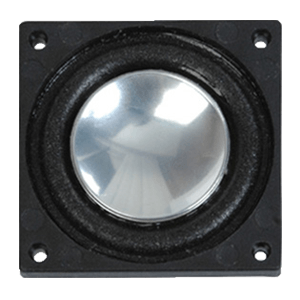

28 mm x 28 mm, Square Frame, 2.0 W, 8 Ohm, Neodymium Magnet, Paper Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Enclosure | Recommended |
|
| S.P. Level (dB) | 82 (1 W / 0.5 m) |
|
| IP Rating | No IP Rating |
|
| Max Input (W) | 4 |
|
| Nominal Input (W) | 2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 310 |
|
| Cone Type | Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 28 x 28 x 11.2 |
|
| Dimensions LxWxH (in) | 1.1 x 1.1 x 0.44 |
|
| Mounting Style | Solder Eyelet(s) |
|
