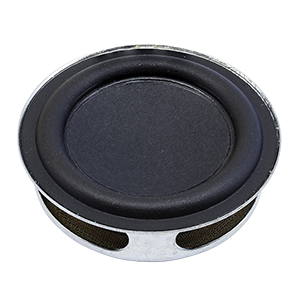

CMS-4020-24SP
40 x 20.7 mm, Round Frame, 2 W, 4 Ohm, Neodymium Magnet, PU & Paper Cone Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Efficiency Type S.P. Level (dB) | 83 |
|
| Efficiency Testing | 1 W / 0.5 m |
|
| Nominal Input (W) | 2 |
|
| Max Input (W) | 3 |
|
| Impedance (Ohms) | 4 |
|
| Resonance Freq. (Hz) | 145 |
|
| Enclosure | Recommended |
|
| Cone Type | PU and Paper |
|
| Magnet Type | Nd-Fe-B |
|
| Mounting Style | Solder Pads |
|
| Frame Shape | Round |
|
| IP Rating | No IP Rating |
|
| Dimensions LxWxH (mm) | 40 x 40 x 20.7 |
|
| Dimensions LxWxH (in) | 1.57 x 1.57 x 0.81 |
|
