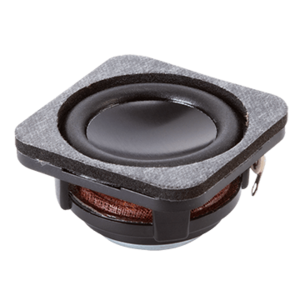

CMS-3118-38E
31.6 x 18.35 mm, Square Frame, 3 W, 8 Ohm, Neodymium Magnet, Rubber and AL Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| Nominal Input (W) | 3 |
|
| Max Input (W) | 5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 380 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Eyelet(s) |
|
| Cone Type | Rubber and AL |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Square |
|
| Dimensions LxWxH (mm) | 31.6 x 18.35 x 31.6 |
|
| Dimensions LxWxH (in) | 1.24 x 1.24 x 0.72 |
|
| IP Rating | No IP Rating |
|
Technical Docs
DatasheetAll Speakers Categories
