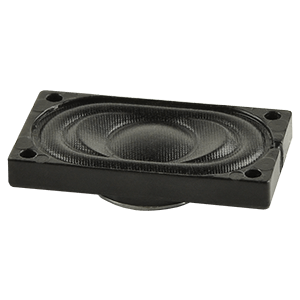

CMS-25148N
25.0 mm x 14.0 mm, Rectangle Frame, 1 W, 8 Ohm, Neodymium Magnet, Cloth Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 92 (1 W / 0.1 m) |
|
| Nominal Input (W) | 1 |
|
| Max Input (W) | 1.5 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 1050 |
|
| Enclosure | Recommended |
|
| Cone Type | Cloth |
|
| Dimensions LxWxH (mm) | 25 x 14 x 5.2 |
|
| Magnet Type | Nd-Fe-B |
|
| Dimensions LxWxH (in) | 0.98 x 0.55 x 0.2 |
|
| Frame Shape | Rectangular |
|
| IP Rating | No IP Rating |
|
| Mounting Style | Solder Pads |
|
