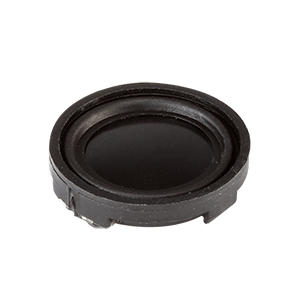

CMS-2053-18SP
20 x 5.3 mm, Round Frame, 1.5 W, 8 Ohm, Nd-Fe-B Magnet, PU & PBT Cone, Speaker
Amplify Your Innovation!
Need a team of sound specialists to optimize your design's audio system? From speaker enclosures to custom audio solutions and more, Same Sky's industry-leading audio design services are here to help.
Learn MoreSpecifications
| Type | Description | |
|---|---|---|
| S.P. Level (dB) | 84.5 (1.5 W / 0.5 m) |
|
| Nominal Input (W) | 1.5 |
|
| Max Input (W) | 2 |
|
| Impedance (Ohms) | 8 |
|
| Resonance Freq. (Hz) | 700 |
|
| Enclosure | Recommended |
|
| Mounting Style | Solder Pads |
|
| Cone Type | PU+PBT |
|
| Magnet Type | Nd-Fe-B |
|
| Frame Shape | Round |
|
| Dimensions LxWxH (mm) | 20 x 20 x 5.3 |
|
| Dimensions LxWxH (in) | 0.787 x 0.787 x 0.208 |
|
| IP Rating | No IP Rating |
|
